型號：5103-10klbs,5103-20klbs,5103-50klbs,5103-100klbs,5103-150klbs,5103-200klbs
形狀：軸銷式傳感器
名稱：5103-50klbs,美國Revere 5103-50klbs稱重傳感器

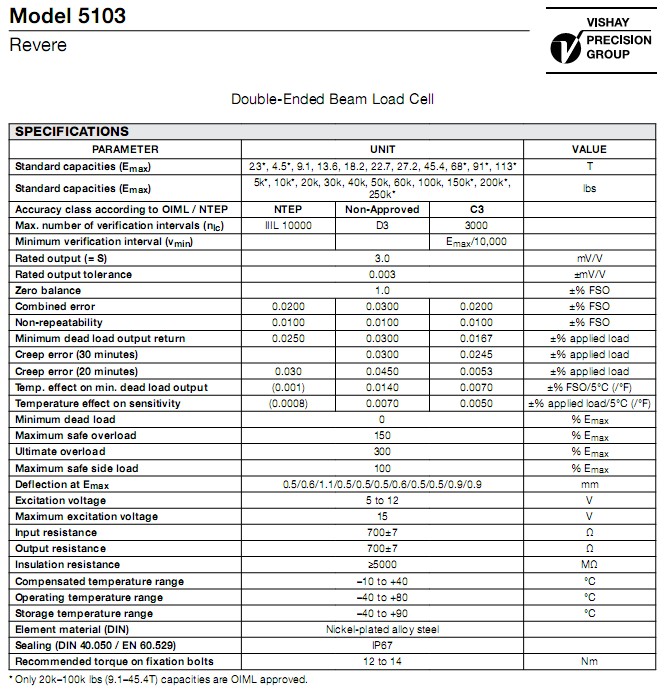

美國Revere 5103-50klbs稱重傳感器參數
美國Revere 5103-50klbs稱重傳感器特點
▲Platform scales平臺秤
▲On-board weighing車載稱重
▲Weighbridges地秤
▲Silo hopper weighing料倉料斗秤
▲5103 transducers are double-ended, center-loaded shear
▲5103傳感器的雙端，中心加載的剪切
▲beam load cells. The 5103 is constructed of nickel-plated
▲束負載細胞。5103是由鍍鎳
▲alloy steel loadcells.
▲合金鋼稱重傳感器。
▲These products are suitable for tank weighing systems,
▲這些產品為罐稱重系統是合適的
▲low cost weighbridges, and axle weighers.
▲低成本的地秤，輪軸秤
▲A reliable sealing is ensured by the proprietary TRANSEAL
▲可靠的密封是由專有的transeal保證
▲potting compound and additional mechanical protection
▲灌封化合物和額外的機械保護
▲of the strain gage area.應變計的地區
▲A specially designed mounting arrangement is available,
▲一個專門設計的安裝是可用的
▲providing the ideal solution for vessel / tank weighing.
▲提供容器/罐稱重理想溶液
美國Revere 5103-50klbs稱重傳感器尺寸
所有型號：
5103-5klbs,5103-10klbs,5103-20klbs,5103-30klbs,5103-40klbs,5103-50klbs,5103-60klbs,5103-100klbs,5103-150klbs,5103-200klbs,5103-250klbs,5103-2.3t,5103-4.5t,5103-9.1t,5103-13.6t,5103-18.2t,5103-22.7t,5103-27.2t,5103-45.4t,5103-68t,5103-92t,5103-113t
除5103-50klbs其它軸銷式傳感器型號請點擊
美國Revere軸銷形狀請點擊：9103稱重傳感器
美國STS軸銷形狀請點擊：65058A-25K-SS傳感器
如果您對美國Revere 5103-50klbs稱重傳感器的接線、量程、尺寸、圖片、參數、廠家、型號、安裝使用有任何疑問，請聯系【廣州南創電子】陳小姐了解詳情，歡迎撥打全國統一服務熱線：18529283875（零二零-二二一五七一七零）。
